Product Details

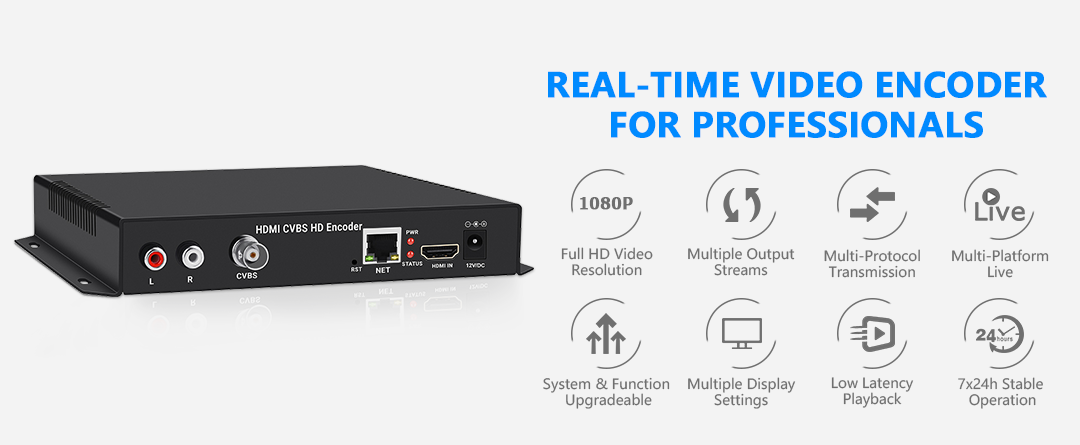

- H.264 HDMI + CVBS /RCA Video Encoder

- H.264 HDMI + CVBS /RCA Video Encoder

Model No.： UHCE264-1
Input： HDMI(audio bulid-in)+CVBS(BNC)+R /L audio
Video Encoding： H.264 /AVC
Audio Encoding： AAC, MP3, G.711
Output Video： 3 video streams output simultaneously(Main, Second, CVBS Stream)
Output Audio： HDMI audio and analog audio(R /L)
Video Resolution： Adjustable, max 1920X1080@60fps input and output
Streaming Protocol： HTTP, UDP, RTSP, RTMP, HLS(M3U8), ONVIF, RTP, Unitcast, RTMPS etc
Video Bitrate： Adjustable from 16kbit/s to 12mbit/s(CBR, VBR)
Audio Bitrate： Adjustable from 48000kb/s to 256000kb/s
Control Mode： Web page control, support wide area network remote management
OSD Setting： Support to add logo, text on the displayed video
Customization： Provide logo, function, language, firmware etc customization
Extral Service： Provide SDK /API /CGI for secondary development
General： 181x183x29/mm(Size), 405g(Weight), Aluminum Shell
Description

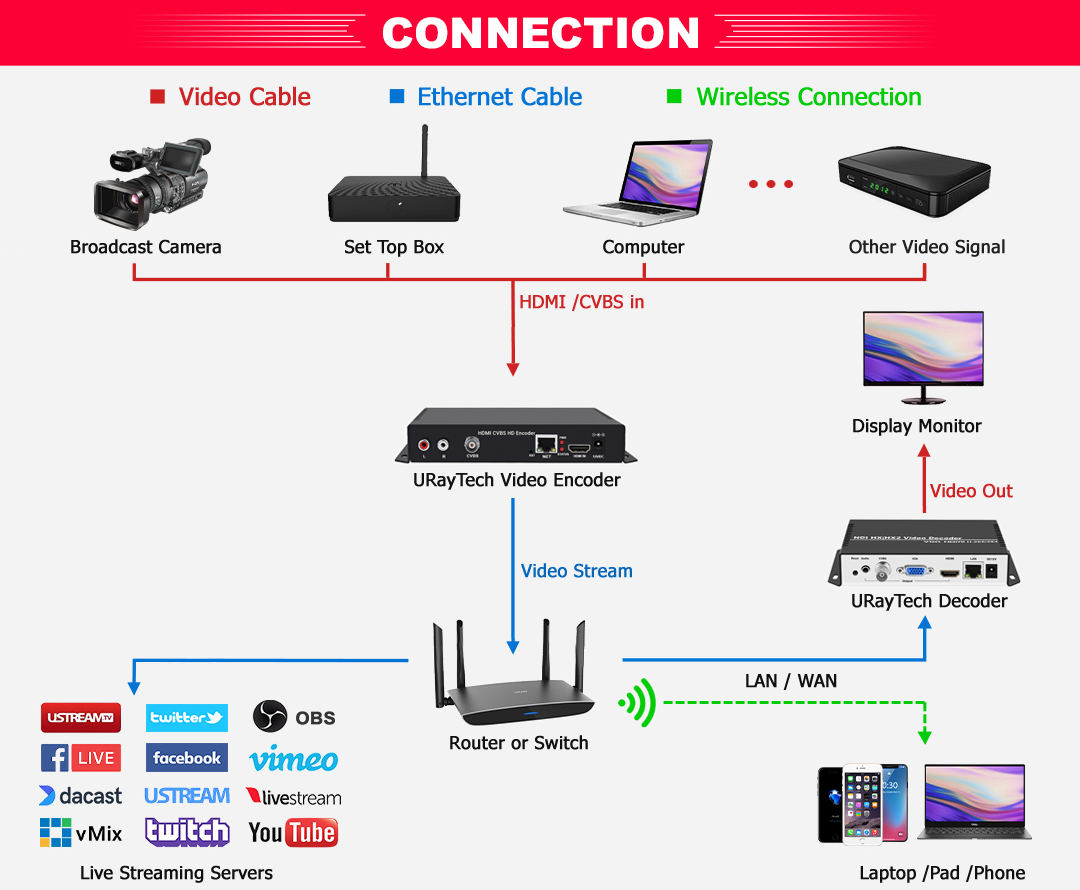

Connection Diagram.jpg





  • Support H.264 /AVC video encoding

    Support AAC, MP3, G.711 audio encoding

20220726

  • Support to live streaming on 3 live broadcast platforms simultaneously

    3 streams output simultaneously, support different protocol transmission for each stream


  • Support output video frame rate setting, max 60fps input and output

    Support output video resolution setting, max 1920x1080P input and output

  • Choose suitable streaming URL to prioritize bandwidth consumption or image quailty

    Support HTTP, RTSP, RTMP(S), HLS(M3U8), UDP, RTP, FLV, ONVIF, Unitcast etc protocol

  • Support multiple on screen display settings, such as logo /text etc

    Support customize the no signal image when there is no input signal

  • Support both HDMI audio and R /L analog audio input simultaneously

    Support to switch HDMI audio or R /L analog audio as output audio at will


  • Provide SDK /API /CGI for secondary development

    Support logo printing /language /firmware /function etc customization




Model No.

UHCE264-1

Video

Input Video

HDMI+CVBS(BNC)

Input Resolution

Max 1920x1080 input, max 60fps frame rate

Video Encoding

MPEG-4 /H.264 AVC

Encoding Levels

H.264 high /main /baseline profile

Video Bitrate

Adjustable From 16kbit /s to 12mbit /s

Bitrate Control

CBR, VBR

Output Resolution

It is adjustable, max 1920x1080P /60fps

CVBS

Support PAL and NTSC

Audio

Input Audio

HDMI embedded audio and R /L analog audio

Output Audio

Support to switch HDMI audio and R /L analog audio at will

Sampling Rate

44.1KHz, 48KHz

Bitrate Control

Adjustable from 48000~256000

Audio Encoding

AAC, MP3, G.711

Network

Interface

Ethernet port(1000 BASE-T)

Streaming Protocol

HTTP, RTSP, RTMP(S), HLS, ONVIF, UDP, RTP, Unitcast etc

Control Panel

Webpage UI(language customizable)

Firmware Update

Enable by uploading files to dashboard and upgrade

General

Dimension (W* L* H)

181 x 183 x 29 mm

Net Weight

405 g

Temperature

0 to 45(For working), -20 to 80(For storing)

Input Voltage

DC 12V /2A

Material

Aluminum Shell



4-control panel.jpg• Status Display(Click to enlarge)

status display.jpg


• Network Settings (Click to enlarge)

不带wifi的network setting.jpg


• Main Stream Settings (Click to enlarge)

main stream.jpg


• Second Stream Settings (Click to enlarge)

second stream.jpg


• CVBS Stream Setting (Click to enlarge)

CVBS stream.jpg


• Audio Settings (Click to enlarge)

audio setting.jpg


• System Setting(Click to enlarge)

system setting.jpg
