Product Details

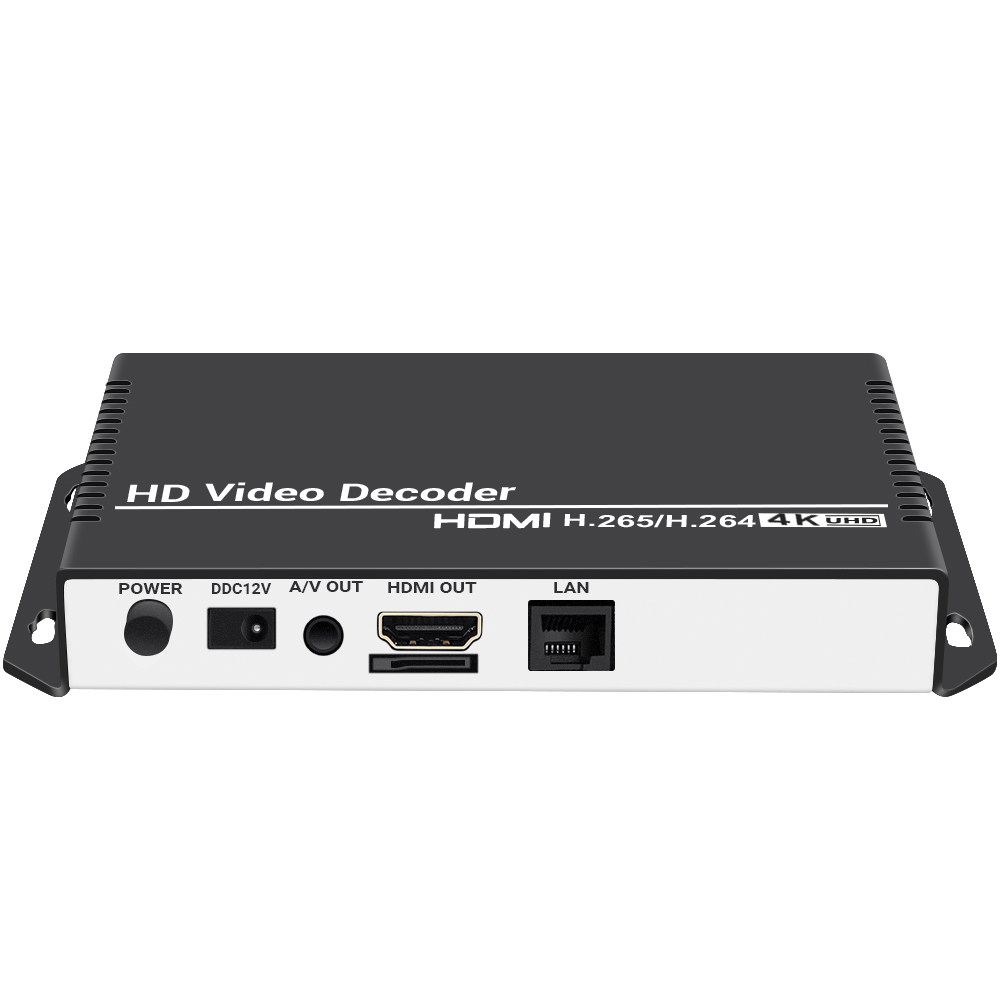

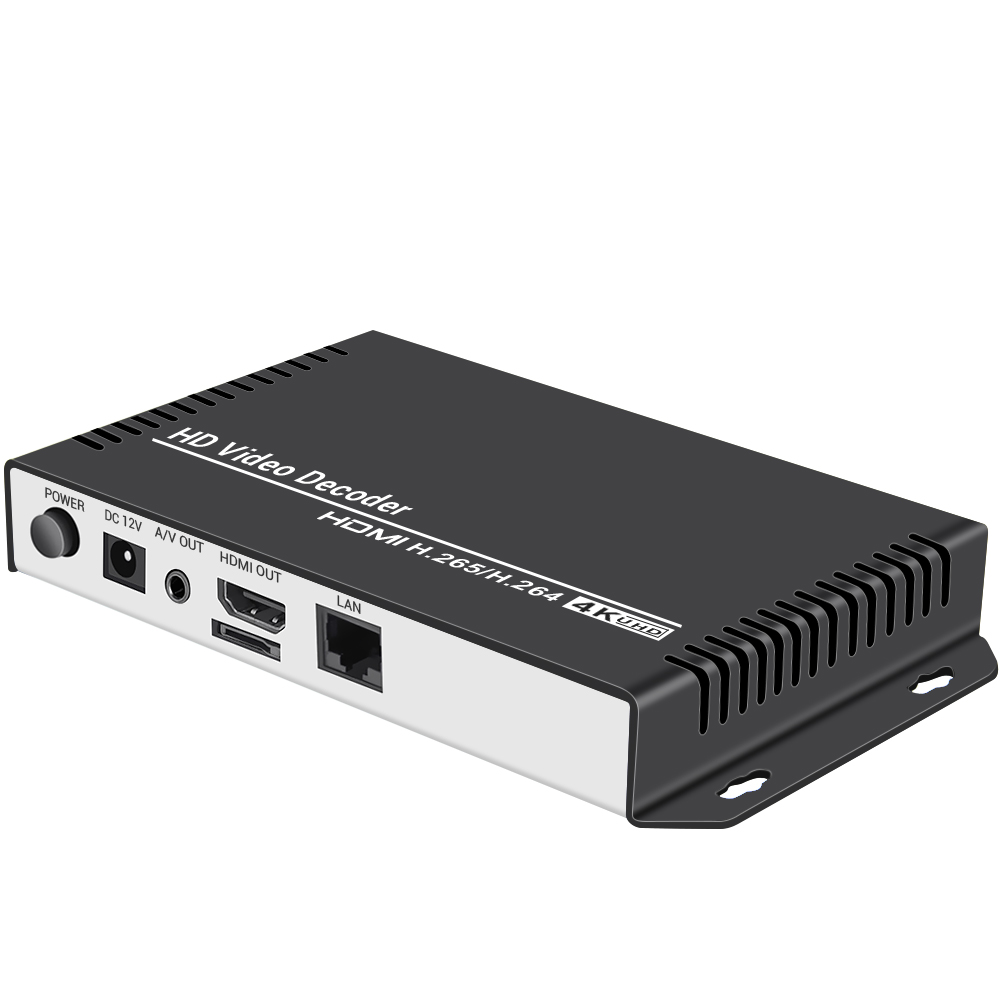

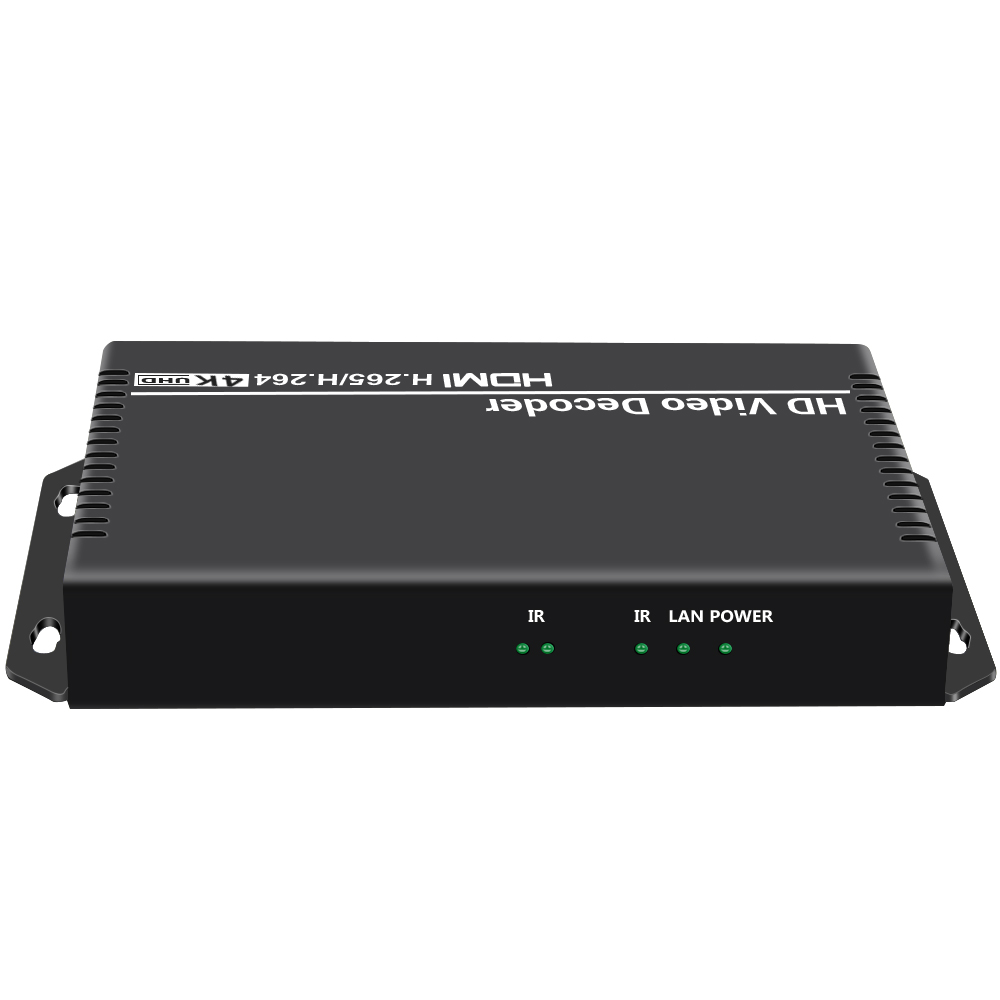

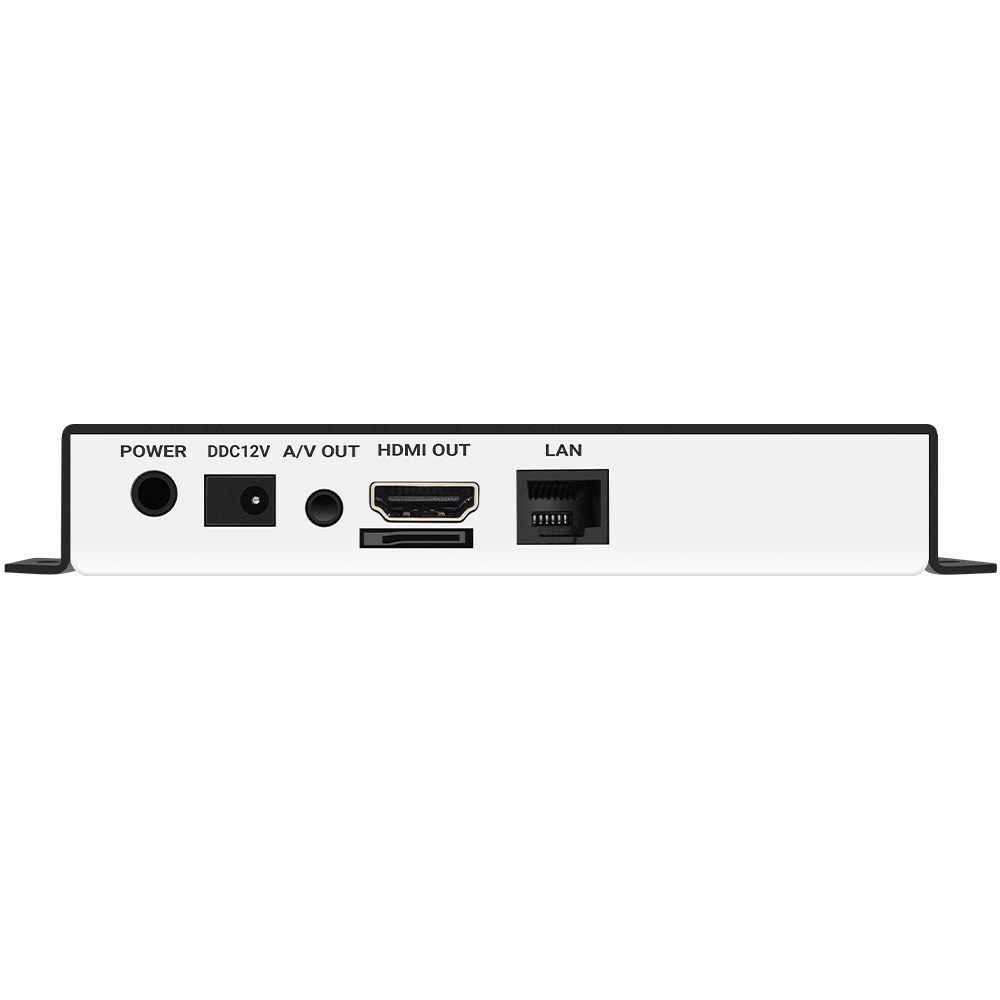

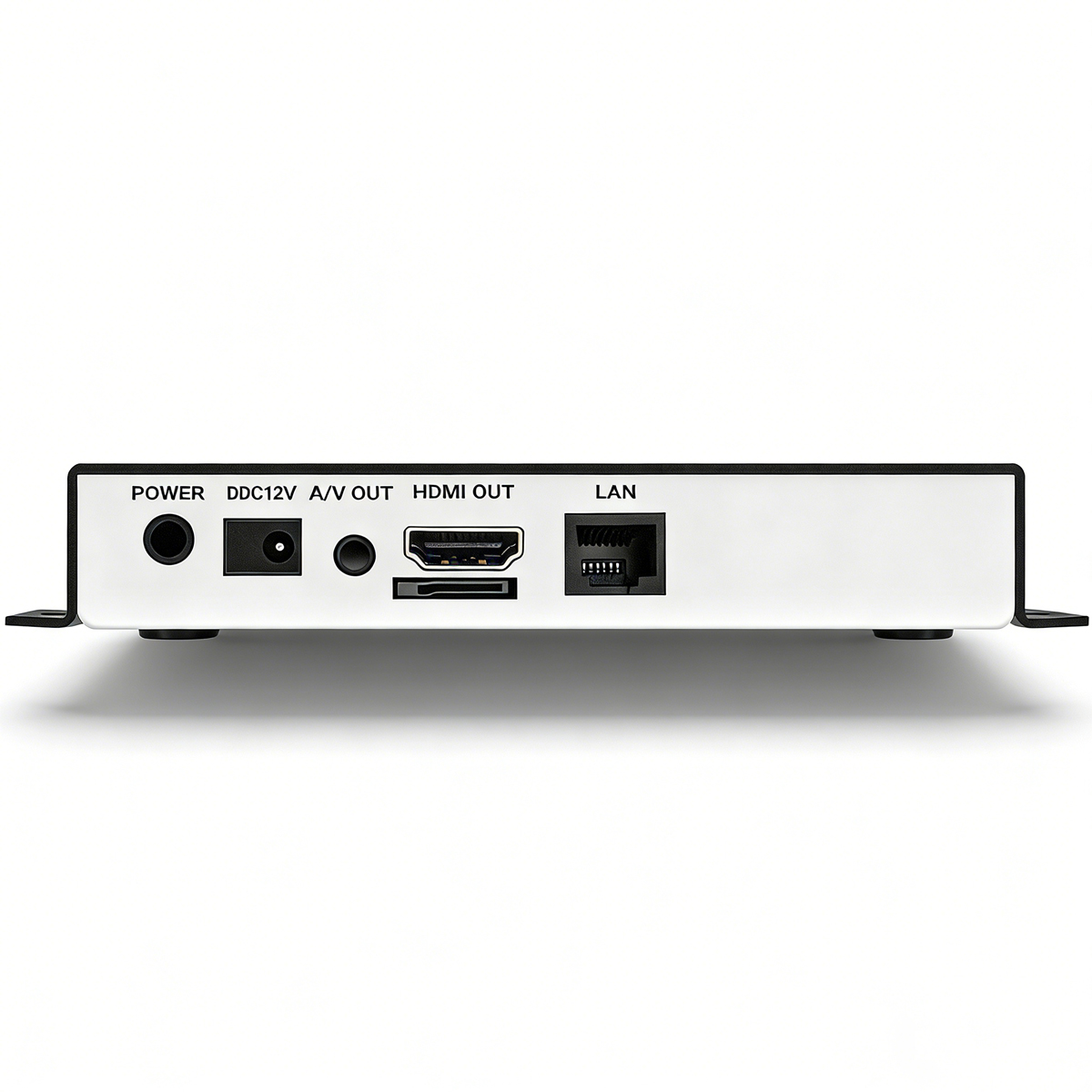

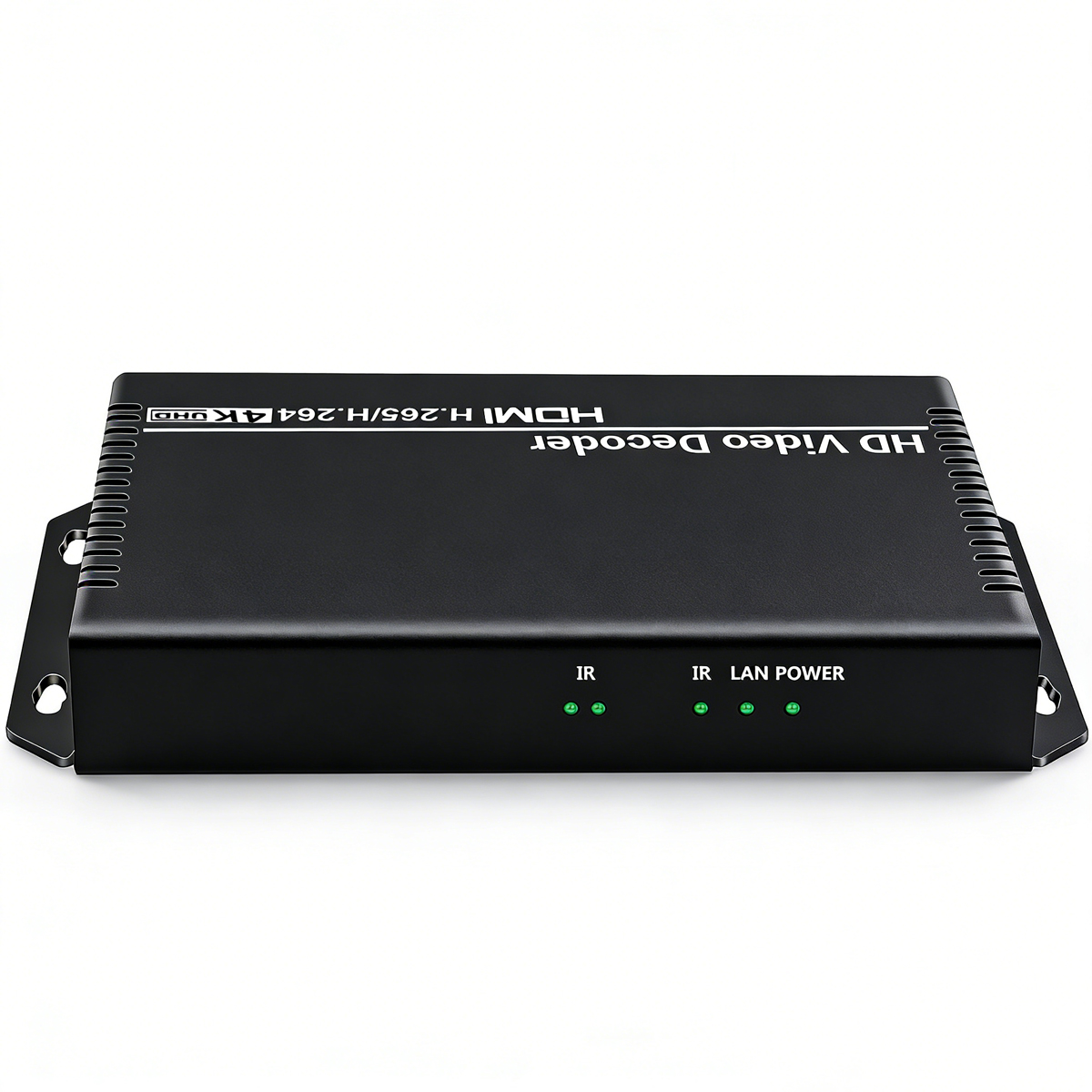

4K Video Decoder with HDMI + AV /CVBS Output

4K Video Decoder with HDMI + AV /CVBS Output

Model No.： UHAD265-1-4K
Input： Video stream address (Max 30 channels)
Output Video： HDMI(audio build-in) and CVBS /AV output simultaneously
Output Audio： HDMI audio+analog audio(R /L) output simultaneously
Streaming Protocol： HTTP, UDP, RTP, RTSP, RTMP, HLS(M3U8), FLV Unitcast etc
Control Mode： Web or IR remote control, support WAN remote management
Customization： Provide many kinds of OEM, such as logo, function, language etc
General： 137x92x20mm(Size), 285g(Weight), Aluminum Shell
Video Decoding： H.265, H.264
Audio Decoding： AAC, AAC+, AAC++, MP3, MP2, AC3
Display Mode： Max 30 channels, support to switch the channel
Transmission： Ethernet Cable(1000 BASE-T)
USB Video： RMVB, MOV, AVI, WMV, MTK, MKV, TS, MPG
Advanced Feature： Resolution setting, aspect ratio setting, volume setting etc
Upgrade： Support upgrade the device by uploading new firmware
Description

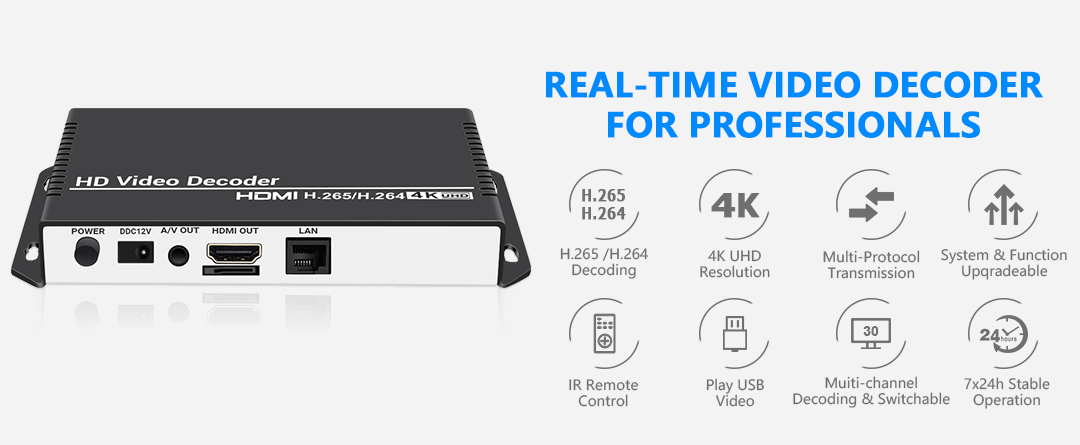

海报-900(1).jpg‍

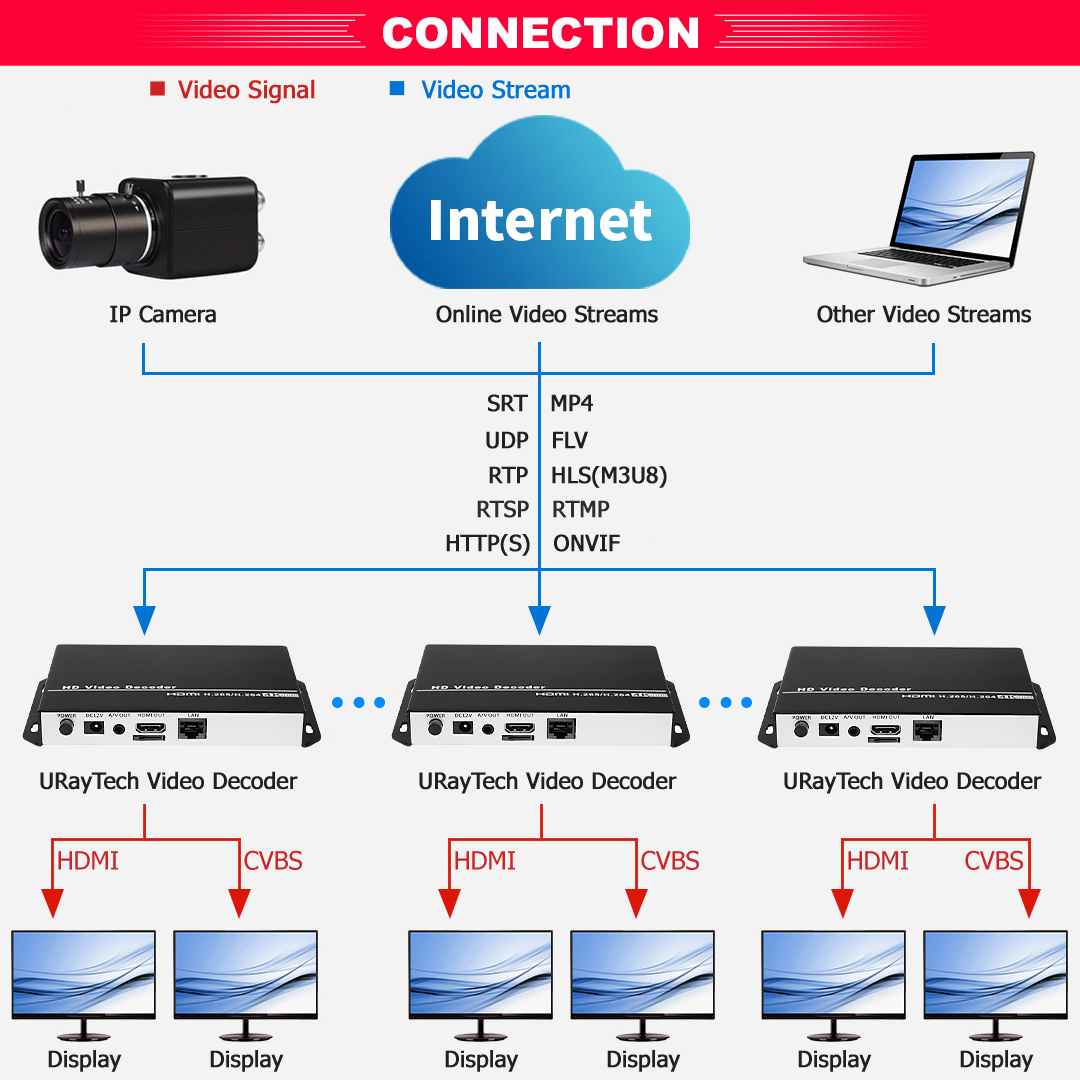

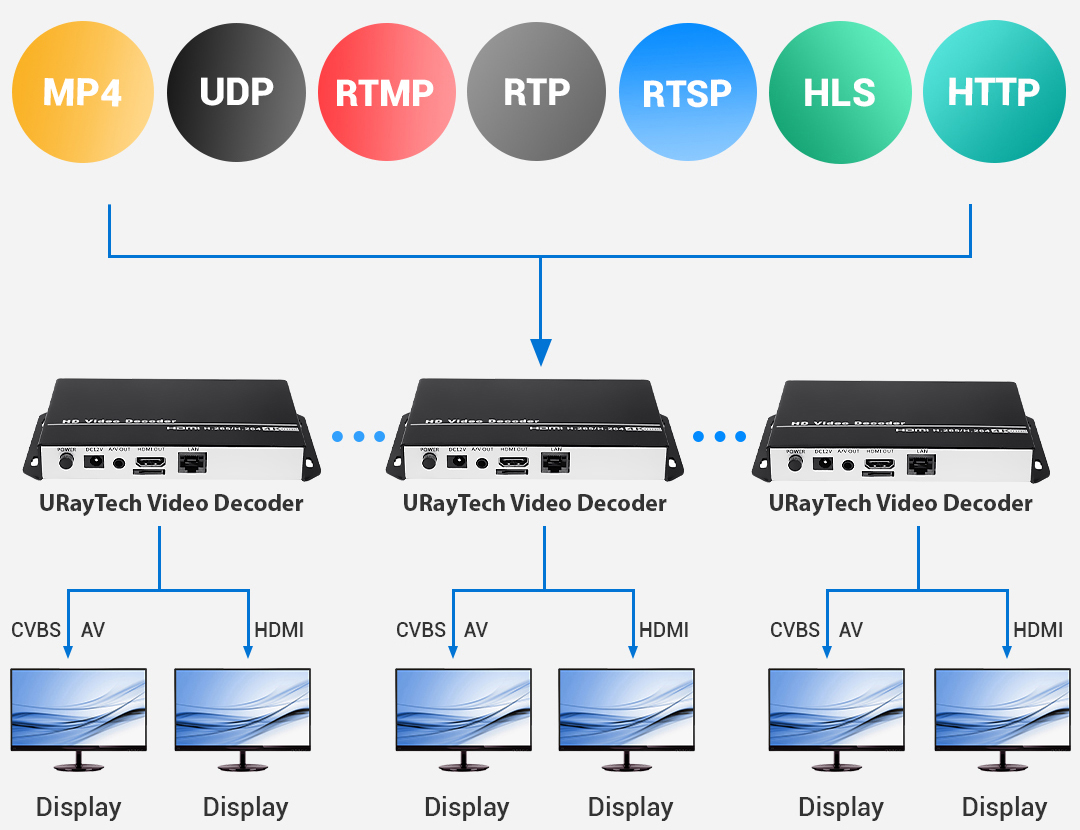

1-connection diagram.jpg



feature

  • Support a variety types of video streaming address input and decoding

    Support HDMI and AV /RCA /CVBS output simultaneously


  • Max 30 channels of video streams can be input and decoded

    You can use the IR remote control to switch the channel

  • Support output video frame rate setting, max 60fps input and output

    Support output video resolution setting, max 3840x2160P input and output

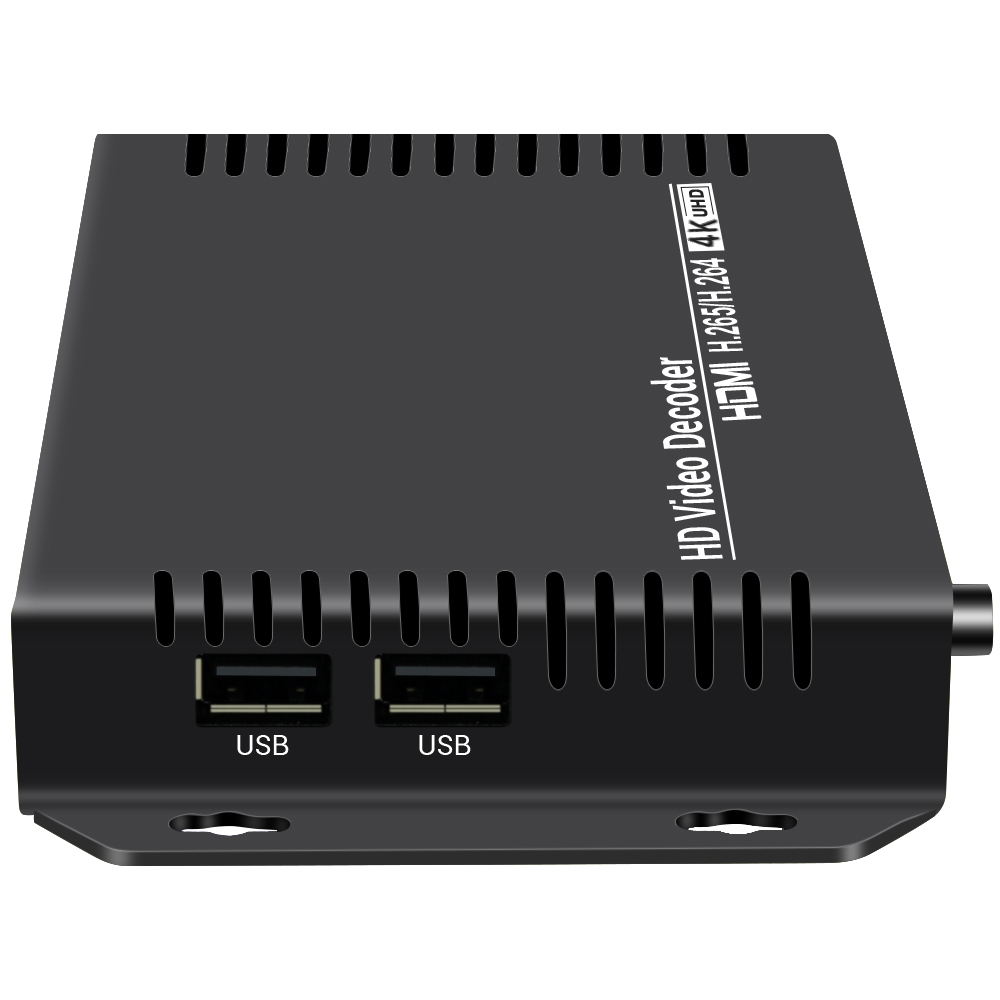

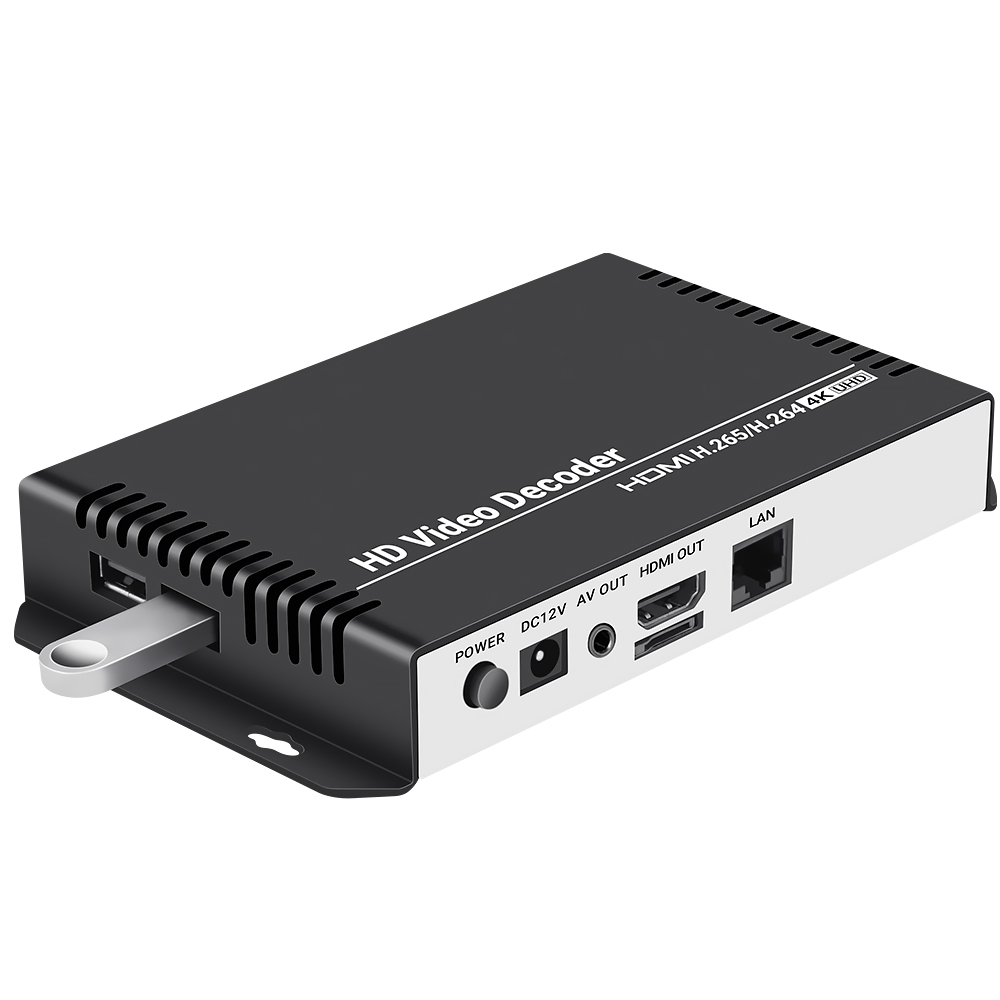

  • Automatic playback of USB flash disk video files when network disconnected

    When the network is restored, the video stream is automatically played

  • Support multiple on screen display settings, such as logo /text /scroll text /time etc

    Support customize the no signal image when there is no input signal

  • Support resolution, color, brightness, contrast, saturation, crop, rotate, hue, scaling etc video settings

    Support wide area network remote management(via port forwarding)

  • Receive SRT /RTMP streams pushed from other platforms and decode the stream, works like a server

    Support output video resolution setting, max 3840x2160P input and output


  • Provide SDK /API /CGI for secondary development

    Support logo printing /language /firmware /function etc customization



specification

Model No.

UHAD265-1-4K

Video

Input

Video stream address (Max 30 channels)

Video Resolution

Max 3840X2160 input and output, output resolution is adjustable

Video Decoding

H.265, H.264

Output

HDMI(audio build-in), CVBS /AV output simultaneously

OSD Setting

Support logo, text, scroll text etc on screen display settings

Video Processing

Resolution, Video Color, Brightness, Contrast, Saturation, Crop, Rotate, Hue, Scaling etc

Display Mode

1P, 4P(Quarter), 4P(3L1R), 4P(1L3R), 4P(3T1B), 4P(1T3B)

Frame Rate

Max 30fps when 4K input or output; Max 60fps when 1920x1080(or lower) input or output

Audio

Audio Decoding

AAC, AAC+, AAC++, MP3, MP2, AC3, G.711

Output Audio

HDMI audio, external audio(3.5mm jack) output simultaneously

Stereo Audio

From channel 1 to channel 4 for selection

Network

Interface

Ethernet port(1000 BASE-T)

Streaming Protocol

SRT, HTTPS, UDP, RTP, RTSP, RTMP, HLS(M3U8), ONVIF, FLV, Unitcast etc

Control Panel

Web page control, support wide area network remote management

Upgrade

Support upgrade the device by uploading new firmware

General

Dimension (W* L* H)

137 x 92 x 00 /mm

Weight

285g

Customization

Provide many kinds of OEM, such as logo, function, language etc

Power

DC 12V /1A

Material

Aluminum Shell



4-control panel.jpg• Status (Click to enlarge)



• Display Setting (Click to enlarge)



• Channel Setting (Click to enlarge)

小的channel setting.jpg


• Network Setting (Click to enlarge)

network setting.jpg


• Password (Click to enlarge)



• Upgrade (Click to enlarge)



• Reboot (Click to enlarge)
