Product Details

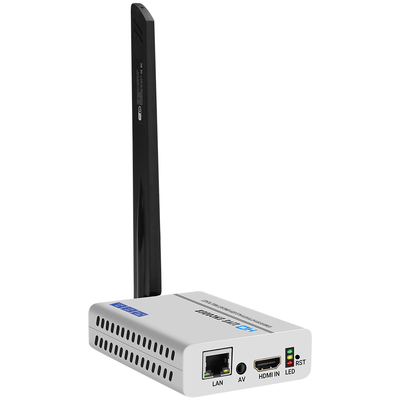

- H.265 /H.264 HDMI+CVBS /AV /RCA Encoder WIFI

- H.265 /H.264 HDMI+CVBS /AV /RCA Encoder WIFI

Model No.： UHAE265-1W-Mini
Input： HDMI(audio bulid-in)+AV /CVBS /RCA
Video Encoding： HEVC /H.265, H.264 /AVC
Audio Encoding： AAC, MP3, MP2, G.711
Output Video： 2 video streams output simultaneously
Output Audio： Support to switch HDMI audio or AV audio as output audio
Video Resolution： Adjustable, max 1920X1080@60fps input and output
Streaming Protocol： HTTP, RTSP, RTMP(S), SRT, HLS, ONVIF, UDP, RTP, Unitcast etc
Video Bitrate： Adjustable from 16kbit/s to 12mbit/s
Audio Bitrate： Adjustable from 24000kb/s to 320000kb/s
Control Mode： Web page control, support wide area network remote management
OSD Setting： Support to add logo, text on the displayed video
Customization： Provide logo, function, language, firmware etc customization
Extral Service： Provide SDK /API /CGI for secondary development
General： 135x72x27/mm(Size), 190g(Weight), Aluminum Shell
Description

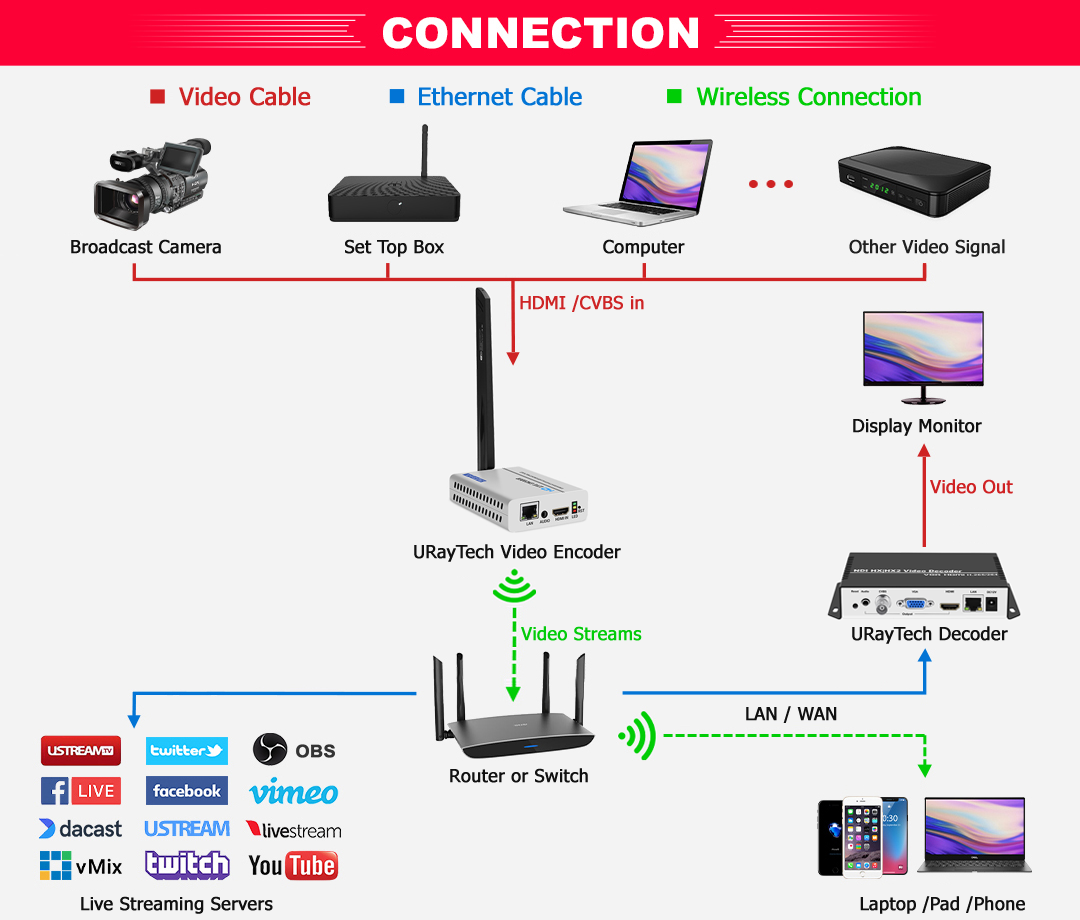

Connection Diagram.jpg





  • Support HEVC /H.265, H.264 /AVC video encoding

    Support AAC, MP3, MP2, G.711 audio encoding

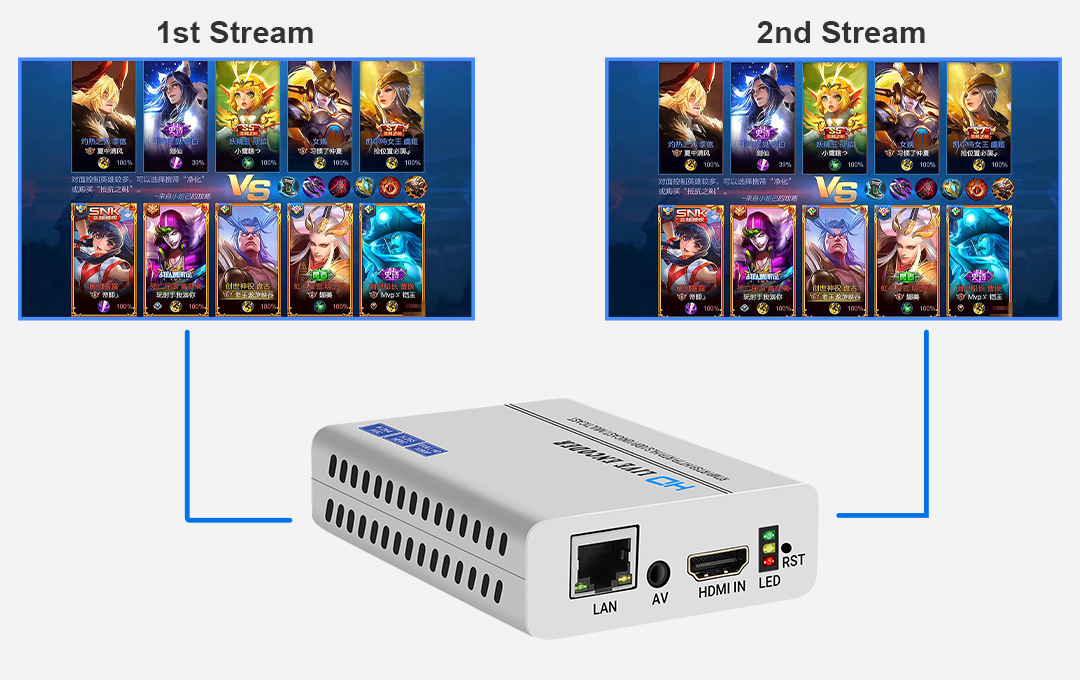

  • Support to live streaming on 2 live broadcast platforms simultaneously

    2 streams output simultaneously, support different protocol transmission for each stream

  • Support output video frame rate setting, max 60fps input and output

    Support output video resolution setting, max 1920x1080P input and output

  • Choose suitable streaming URL to prioritize bandwidth consumption or image quailty

    Support SRT, HTTP, RTSP, RTMP(S), HLS(M3U8), UDP, RTP, FLV, ONVIF, Unitcast etc protocol

  • Support on screen display settings, such as logo /text etc

    Support customize the no signal image when there is no input signal

  • Support HDMI audio and AV audio(or R /L audio) input simultaneously

    Support to switch HDMI audio or AV audio(or R /L audio) as output audio at will

  • Provide SDK /API /CGI for secondary development

    Support logo printing /language /firmware /function etc customization




Model No.

UHAE265-1W-Mini

Video

Input Video

HDMI(audio bulid-in)+AV /CVBS /RCA

Input Resolution

Max 1920x1080 resolution, max 60fps frame rate

Video Encoding

HEVC /H.265, MPEG-4 /H.264 AVC

Encoding Levels

H.265 main profile; H.264 high /main /baseline profile

Video Bitrate

Adjustable From 16kbit /s to 12mbit /s

Bitrate Control

CBR, VBR

Output Resolution

It is adjustable, max 1920x1080P /60fps

Video Pre-processing

De-interlacing, noise reducing, sharpening etc

Audio

Input Audio

Support HDMI audio and AV audio(or R /L audio) input simultaneously

Output Audio

Support to switch HDMI audio or AV audio(or R /L audio) as output audio at will

Sampling Rate

44.1KHz, 48KHz

Bitrate Control

Adjustable from 24000~320000

Audio Encoding

AAC, MP3, MP2, G.711

Network

Interface

Ethernet port(1000 BASE-T) or WIFI

Streaming Protocol

HTTP, RTSP, RTMP(S), SRT, HLS, ONVIF, UDP, RTP, Unitcast etc

Control Panel

Webpage UI(language customizable)

Firmware Update

Enable by uploading files to dashboard and upgrade

General

Dimension (W* L* H)

135 x 72 x 27 mm

Net Weight

190 g

Temperature

0 to 45(For working), -20 to 80(For storing)

Input Voltage

DC 12V /2A

Material

Aluminum Shell



4-control panel.jpg• Access Address(Click to enlarge)

access address.jpg


• Video Parameters (Click to enlarge)

video parameters.jpg


• Audio Parameters (Click to enlarge)

audio parameters.jpg


• Preview (Click to enlarge)



• Network Setting (Click to enlarge)

network setting.jpg


• Main Stream Setting (Click to enlarge)

HDMI main stream .jpg


• Audio Setting(Click to enlarge)

audio setting.jpg


• OSD Setting (Click to enlarge)

main osd setting.jpg


• Color Setting (Click to enlarge)

color setting.jpg


• Image Setting (Click to enlarge)

image setting.jpg


• RTMP-HLS Setting (Click to enlarge)

RTMP-HLS setting.jpg


• Onvif Setting (Click to enlarge)

onvif setting.jpg


• Reset and Reboot (Click to enlarge)

system setting.jpg


• Upgrade Setting (Click to enlarge)

upgrade setting.jpg
